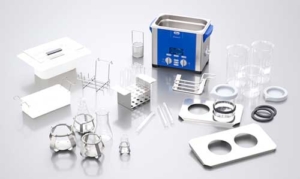

Ultrasonic Cleaner Accessories

The maxim “have the right tools for the job” should be your guideline in selecting ultrasonic cleaner parts and accessories that improve the efficiency of your ultrasonic cleaning tasks.  Carefully considered investments in parts and accessories should soon pay for themselves in terms of improved cleaning results, faster throughput, customer satisfaction and in expanding the services you offer.  Here are some suggestions for your consideration.

New Baskets and Pins

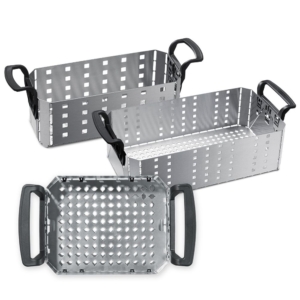

Elma’s new baskets feature a punched pattern on the base and side walls. With available different pins, these holes allow the objects inside to be positioned as required. For unlimited flexibility.

Each item can be individually secured – whether bulky industrial parts, laboratory glassware, small watch components or items of jewelry. The number of objects that can be cleaned in the basket is thus maximized and optimal cleaning results are ensured thanks to perfect placement, which also saves water, cleaning chemicals, energy as well as time and money.

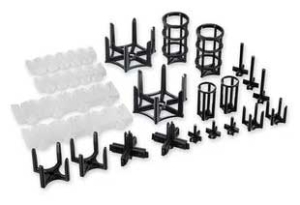

When you purchase the Elma Basket, you can also order the Elma Pins and the holders as optional accessories. These products are recommended if you want to customize your cleaning process.

Using Baskets for Parts Cleaning

Baskets have two key functions for parts cleaning:

1. Parts baskets keep products being cleaned from contact with the bottom of the ultrasonic cleaner tank. Otherwise severe damage and eventual leaking will result due to vibrations.
2. Parts baskets ensure cavitation (cleaning) action is maximized by holding products at the optimum level above the tank bottom. This is why different tank dimensions call for correct basket specifications.

Most ultrasonic cleaner parts baskets are designed with an open mesh bottom of sufficient strength to hold products being cleaned.  Do not overload your baskets by stacking parts in an effort to clean more parts at the same time. Best results are achieved when parts are not in contact with each other.

A variety of special ultrasonic cleaner parts accessories are available to handle special cleaning requirements.  Examples include jewelry racks and racks to position printed circuit boards in the solution.

If you clean very small parts consider fine mesh immersion baskets that can be positioned in standard baskets or otherwise suspended in the cleaning solution.   For another look at this see the section on cleaning with volatile solvents.

And as a refresher we invite you to view our video “Why use ultrasonic cleaner parts baskets?”

Alternatives to Ultrasonic Cleaner Parts Baskets

If you clean very large parts in an industrial ultrasonic cleaner an alternative is a mechanism to lower the part into the ultrasonic cleaning solution.

Exercise care to keep the part from contacting the bottom of the tank.  Some tanks are designed with ridges fabricated on the bottom to hold these parts, thus freeing the raising and lowering mechanism for use elsewhere during your cleaning cycle.

Ultrasonic Cleaner Parts to Reduce Noise and Evaporation

Ultrasonic is defined as sound above the range of human hearing (typically 20,000 cycles per second or 20 kHz).  But ultrasonic cleaners do make noise caused by vibrations within the unit itself and parts being cleaned.

Cleaning at higher frequencies is less “noisy” than at lower frequencies.  To reduce noise distraction

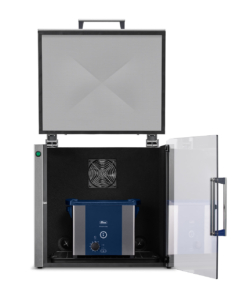

• Place ultrasonic cleaners within sound insulating cabinets
• Sound-deadening lids, available for some models help reduce cleaning solution evaporation
• Equip staff with sound protecting earmuffs

Many models of Elma benchtop ultrasonic cleaners come with lids that do double duty by serving as a drain tray after the cleaning cycle.  This allows you to return drained solution to the cleaning tank.  Larger industrial units may come with standard or insulated lids.

Ultrasonic Cleaner Parts to Manage Cleaning Solution Temperature

Ultrasonic cavitation creates heat that eventually increases the temperature of your cleaning solution.  In some cases higher temperatures are good in that they improve cleaning efficiency.   In every case this increases cleaning solution evaporation.

Heat is not desirable when cleaning electronics and PCBs because excessive heat may cause warping, thus ruining the board.  The same applies to using an ultrasonic cleaner to clean and restore vinyl records.

Recommended cleaning solution temperatures are provided by manufacturers of the formulas.

When higher temperatures are required specify an ultrasonic cleaner equipped with a heater.  This improves your efficiency by pre-heating the solution before starting your cleaning cycles. But note that after a point (typically 80⁰C) cleaning efficiency drops off.

To avoid cleaning solution temperatures from getting too high, a useful ultrasonic cleaner parts accessory is a cooling coil.  This can be inserted in the ultrasonic cleaner tank and connected to a source of cold water or a water cooling mechanism.
